PGEN - Position Generator [x2]¶
The position generator block produces an output position which is pre-defined in a table
Parameters¶
| Name | Dir | Type | Description |
|---|---|---|---|
| CYCLES | W | UInt32 | Number of cycles |
| ENABLE | In | Bit | Halt on falling edge, reset and enable on rising |
| TRIG | In | Bit | Trigger a sample to be produced |
| OUT | Out | Bit | Current sample |
| TABLE | Table of positions to be output |

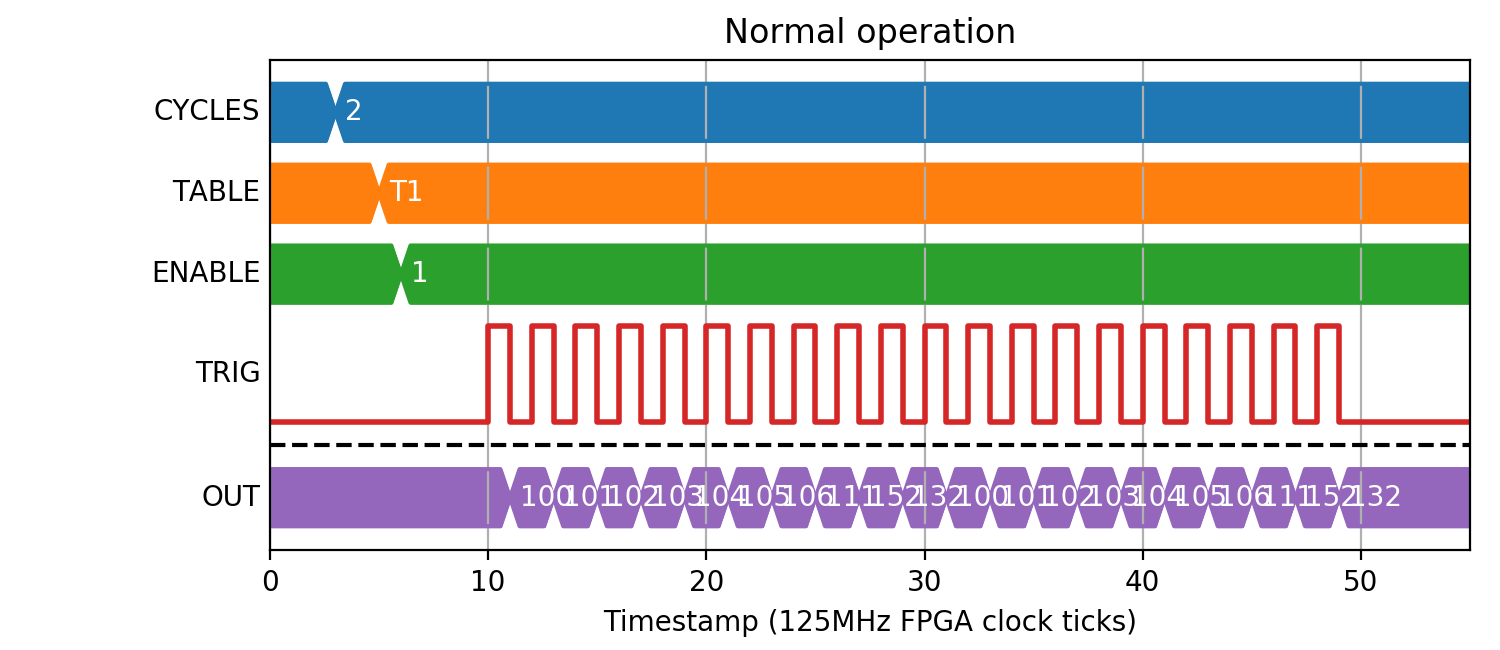

Normal operation¶
The output pulse will be generated regardless of the direction of the INP data
| T1 |
|---|
| POS |
| 100 |
| 101 |
| 102 |
| 103 |
| 104 |
| 105 |
| 106 |
| 111 |
| 152 |
| 132 |
(Source code, png, hires.png, pdf)
