BITS - Soft inputs and constant bits¶
The BITS block contains 4 soft values A..D. Each of these soft values can be set to 0 or 1 by using the SET_A..SET_D parameters.
Parameters¶
| Name | Dir | Type | Description |
|---|---|---|---|
| A | R/W | Bit | The value that output A should take |
| B | R/W | Bit | The value that output B should take |
| C | R/W | Bit | The value that output C should take |
| D | R/W | Bit | The value that output D should take |
| OUTA | Out | Bit | The value of A on the bit bus |
| OUTB | Out | Bit | The value of B on the bit bus |
| OUTC | Out | Bit | The value of C on the bit bus |
| OUTD | Out | Bit | The value of D on the bit bus |
Outputs follow parameters¶

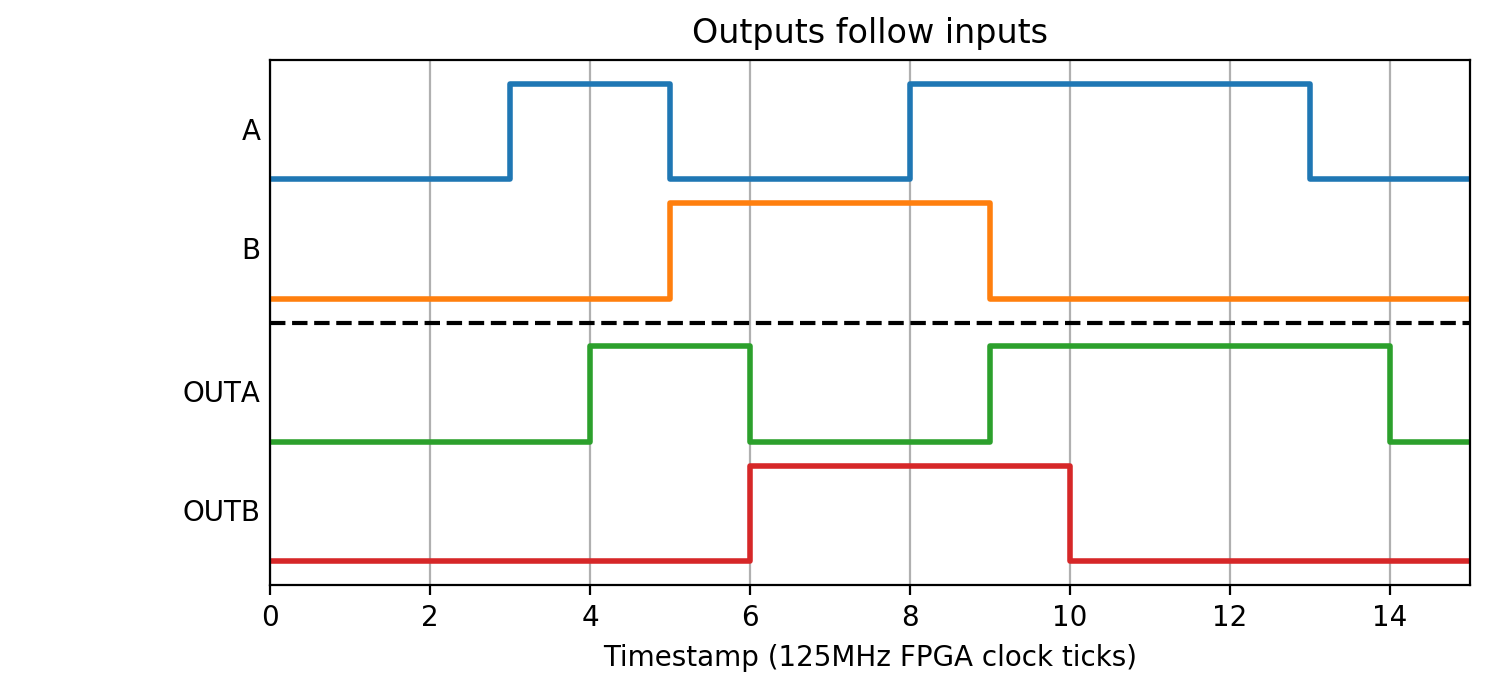

This example shows how the values on the bit bus follow the parameter values after a 1 clock tick propogation delay
(Source code, png, hires.png, pdf)
