BITS - Soft inputs and constant bits¶
The BITS block contains 4 soft values A..D. Each of these soft values can be set to 0 or 1 by using the SET_A..SET_D parameters.
Fields¶
| Name | Type | Description |
|---|---|---|
| A | param bit | The value that output A should take |
| B | param bit | The value that output B should take |
| C | param bit | The value that output C should take |
| D | param bit | The value that output D should take |
| OUTA | bit_out | The value of A on the bit bus |
| OUTB | bit_out | The value of B on the bit bus |
| OUTC | bit_out | The value of C on the bit bus |
| OUTD | bit_out | The value of D on the bit bus |
Outputs follow parameters¶

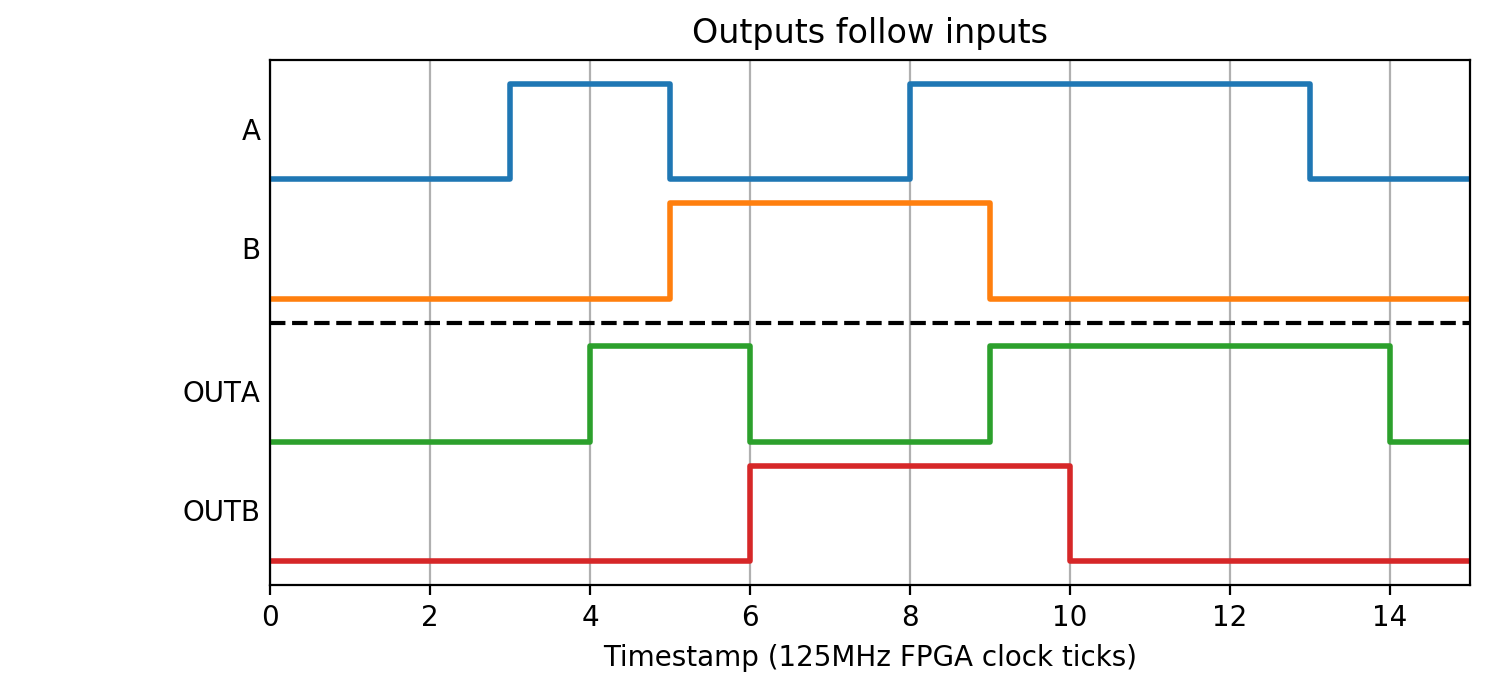

This example shows how the values on the bit bus follow the parameter values after a 1 clock tick propagation delay
(Source code, png, hires.png, pdf)
