SEQ - Sequencer

The sequencer block performs automatic execution of sequenced lines to produce timing signals. Each line optionally waits for an external trigger condition and runs for an optional phase1, then a mandatory phase2 before moving to the next line. Each line sets the block outputs during phase1 and phase2 as defined by user-configured mask. Individual lines can be repeated, and the whole table can be repeated, with a value of 0 meaning repeat forever.

Fields

Name Type Description
ENABLE bit_mux Stop on falling edge, reset and enable on rising edge
BITA bit_mux BITA for optional trigger condition
BITB bit_mux BITB for optional trigger condition
BITC bit_mux BITC for optional trigger condition
POSA pos_mux POSA for optional trigger condition
POSB pos_mux POSB for optional trigger condition
POSC pos_mux POSC for optional trigger condition
TABLE table short
Sequencer table of lines REPEATS Number of times the line will repeat TRIGGER The trigger condition to start the phases POSITION The position that can be used in trigger condition TIME1 The time the optional phase 1 should take OUTA1 Output A value during phase 1 OUTB1 Output B value during phase 1 OUTC1 Output C value during phase 1 OUTD1 Output D value during phase 1 OUTE1 Output E value during phase 1 OUTF1 Output F value during phase 1 TIME2 The time the mandatory phase 2 should take OUTA2 Output A value during phase 2 OUTB2 Output B value during phase 2 OUTC2 Output C value during phase 2 OUTD2 Output D value during phase 2 OUTE2 Output E value during phase 2 OUTF2 Output F value during phase 2
15:0 REPEATS
19:16 TRIGGER enum
0 Immediate
1 BITA=0
2 BITA=1
3 BITB=0
4 BITB=1
5 BITC=0
6 BITC=1
7 POSA>=POSITION
8 POSA<=POSITION
9 POSB>=POSITION
10 POSB<=POSITION
11 POSC>=POSITION
12 POSC<=POSITION
63:32 POSITION int
95:64 TIME1
20:20 OUTA1
21:21 OUTB1
22:22 OUTC1
23:23 OUTD1
24:24 OUTE1
25:25 OUTF1
127:96 TIME2
26:26 OUTA2
27:27 OUTB2
28:28 OUTC2
29:29 OUTD2
30:30 OUTE2
31:31 OUTF2
PRESCALE param time Prescalar for sequencer table times
REPEATS param Number of times the table will repeat
ACTIVE bit_out Sequencer active flag
OUTA bit_out Output A for phase outputs
OUTB bit_out Output B for phase outputs
OUTC bit_out Output C for phase outputs
OUTD bit_out Output D for phase outputs
OUTE bit_out Output E for phase outputs
OUTF bit_out Output F for phase outputs
TABLE_REPEAT read Current iteration through the entire table
TABLE_LINE read Current line in the table that is active
LINE_REPEAT read Current iteration of the active table line
STATE read enum
Internal statemachine state
0 LOAD_TABLE
1 WAIT_ENABLE
2 WAIT_TRIGGER
3 PHASE1
4 PHASE2

Sequencer Table Line Composition

Bit Field Name Description
[15:0] REPEATS Number of times the line will repeat
[19:16] TRIGGER
The trigger condition to start the phases
0: Immediate
1: BITA=0
2: BITA=1
3: BITB=0
4: BITB=1
5: BITC=0
6: BITC=1
7: POSA>=POSITION
8: POSA<=POSITION
9: POSB>=POSITION
10: POSB<=POSITION
11: POSC>=POSITION
12: POSC<=POSITION
[63:32] POSITION The position that can be used in trigger condition
[95:64] TIME1 The time the optional phase 1 should take
[20:20] OUTA1 Output A value during phase 1
[21:21] OUTB1 Output B value during phase 1
[22:22] OUTC1 Output C value during phase 1
[23:23] OUTD1 Output D value during phase 1
[24:24] OUTE1 Output E value during phase 1
[25:25] OUTF1 Output F value during phase 1
[127:96] TIME2 The time the mandatory phase 2 should take
[26:26] OUTA2 Output A value during phase 2
[27:27] OUTB2 Output B value during phase 2
[28:28] OUTC2 Output C value during phase 2
[29:29] OUTD2 Output D value during phase 2
[30:30] OUTE2 Output E value during phase 2
[31:31] OUTF2 Output F value during phase 2

Generating fixed pulse trains

The basic use case is for generating fixed pulse trains when enabled. For example we can ask for 3x 50% duty cycle pulses by writing a single line table that is repeated 3 times. When enabled it will become active and immediately start producing pulses, remaining active until the pulses have been produced:

(Source code, png, hires.png, pdf)

../_images/seq_doc-1.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
3 Immediate 0 5 1 0 0 0 0 0 5 0 0 0 0 0 0

We can also use it to generate irregular streams of pulses on different outputs by adding more lines to the table. Note that OUTB which was high at the end of Phase2 of the first line remains high in Phase1 of the second line:

(Source code, png, hires.png, pdf)

../_images/seq_doc-2.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
2 Immediate 0 5 1 0 0 0 0 0 2 0 1 0 0 0 0
3 Immediate 0 1 1 1 0 0 0 0 2 0 0 0 0 0 0

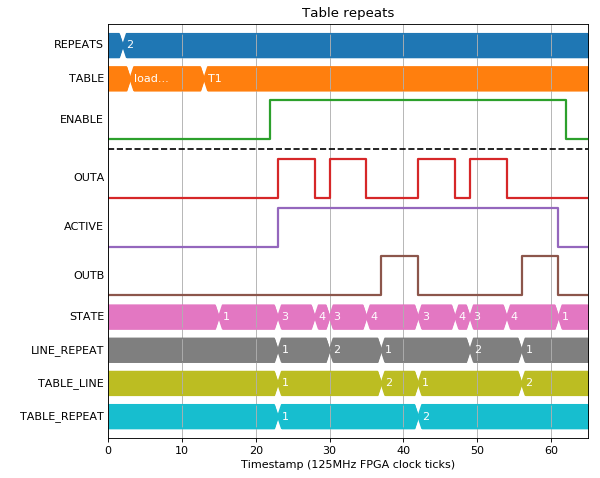

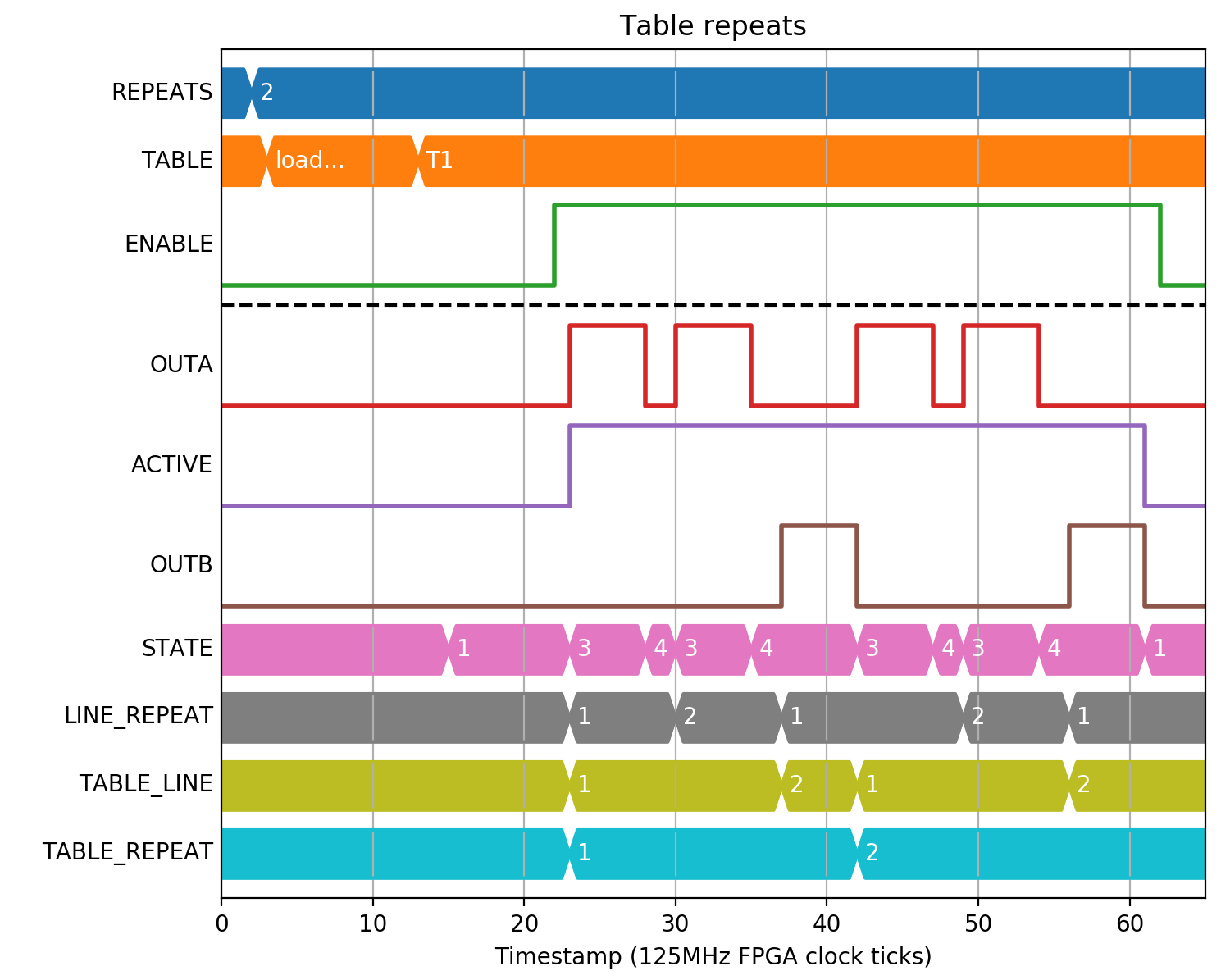

And we can set repeats on the entire table too. Note that in the second line of this table we have suppressed phase1 by setting its time to 0:

(Source code, png, hires.png, pdf)

../_images/seq_doc-3.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
2 Immediate 0 5 1 0 0 0 0 0 2 0 0 0 0 0 0
1 Immediate 0 0 0 0 0 0 0 0 5 0 1 0 0 0 0

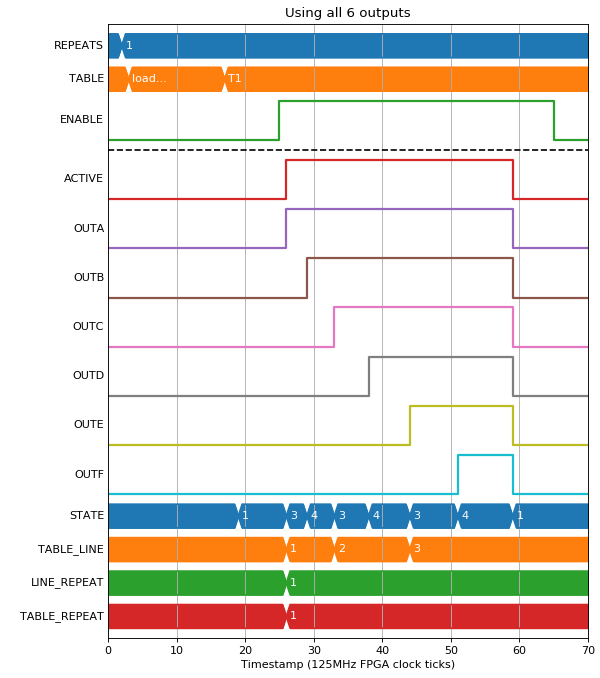

There are 6 outputs which allow for complex patterns to be generated:

(Source code, png, hires.png, pdf)

../_images/seq_doc-4.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
1 Immediate 0 3 1 0 0 0 0 0 4 1 1 0 0 0 0
1 Immediate 0 5 1 1 1 0 0 0 6 1 1 1 1 0 0
1 Immediate 0 7 1 1 1 1 1 0 8 1 1 1 1 1 1

Statemachine

There is an internal statemachine that controls which phase is currently being output. It has a number of transitions that allow it to skip PHASE1 if there is none, or skip WAIT_TRIGGER if there is no trigger condition.

digraph pcomp_sm { WAIT_ENABLE [label="State 0\nWAIT_ENABLE"] LOAD_TABLE [label="State 1\nLOAD_TABLE"] WAIT_TRIGGER [label="State 2\nWAIT_TRIGGER"] PHASE1 [label="State 3\nPHASE1"] PHASE2 [label="State 4\nPHASE2"] WAIT_ENABLE -> LOAD_TABLE [label=" TABLE load started "] WAIT_ENABLE -> WAIT_TRIGGER [label=" rising ENABLE and trigger not met "] WAIT_ENABLE -> PHASE1 [label=" rising ENABLE and trigger met "] WAIT_ENABLE -> PHASE2 [label=" rising ENABLE and trigger met and no phase1 "] LOAD_TABLE -> WAIT_ENABLE [label=" TABLE load complete "] WAIT_TRIGGER -> LOAD_TABLE [label=" TABLE load started "] WAIT_TRIGGER -> PHASE1 [label=" trigger met "] WAIT_TRIGGER -> PHASE2 [label=" trigger met and no phase1 "] PHASE1 -> LOAD_TABLE [label=" TABLE load started "] PHASE1 -> PHASE2 [label=" time1 elapsed "] PHASE2 -> LOAD_TABLE [label=" TABLE load started "] PHASE2 -> WAIT_TRIGGER [label=" next trigger not met "] PHASE2 -> PHASE1 [label=" next trigger met "] PHASE2 -> PHASE2 [label=" next trigger met and no phase1 "] }

External trigger sources

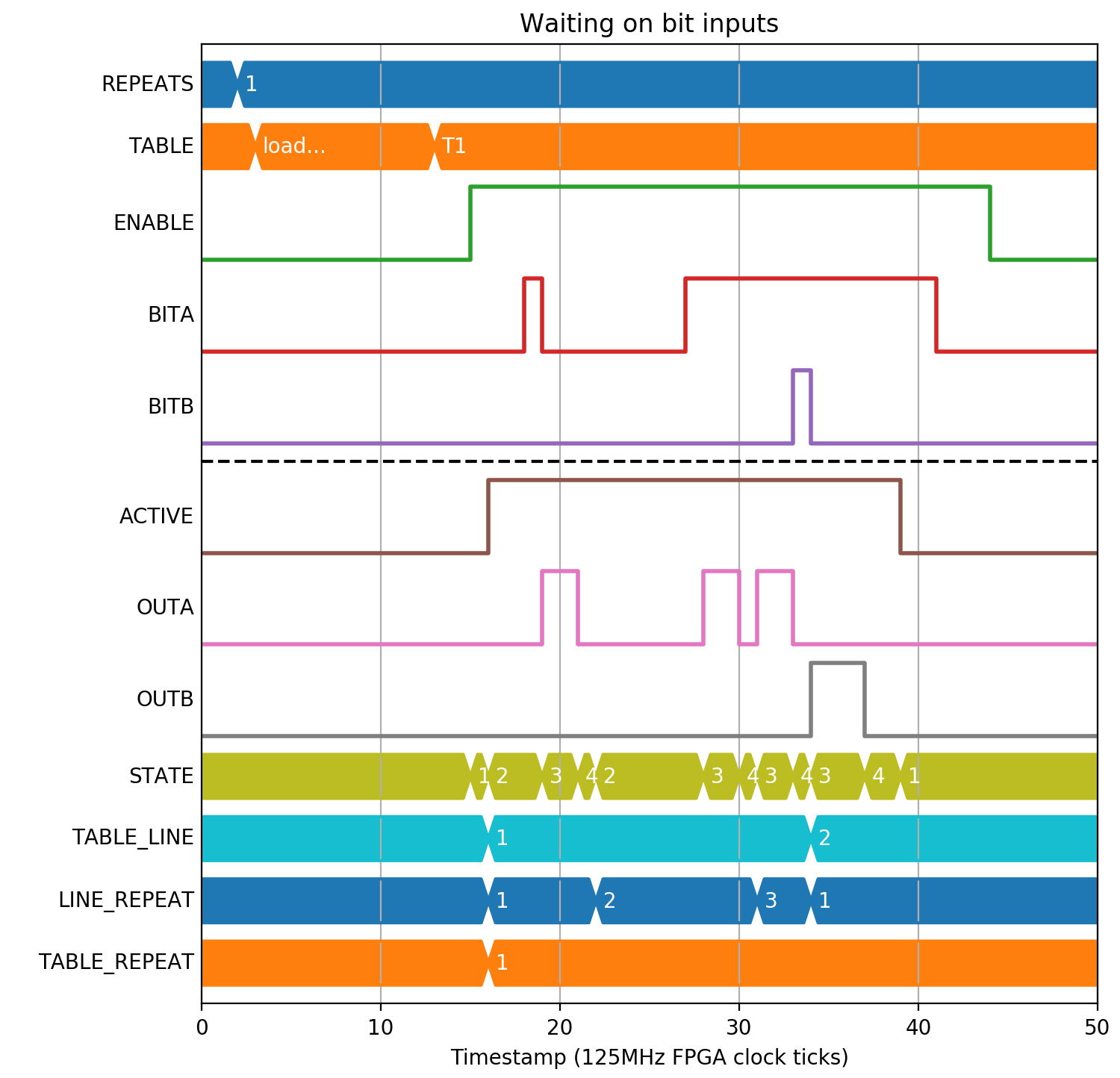

The trigger column in the table allows an optional trigger condition to be waited on before the phased times are started. The trigger condition is checked on each repeat of the line, but not checked during phase1 and phase2. You can see when the Block is waiting for a trigger signal as it will enter the WAIT_TRIGGER(2) state:

(Source code, png, hires.png, pdf)

../_images/seq_doc-5.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
3 BITA=1 0 2 1 0 0 0 0 0 1 0 0 0 0 0 0
1 BITB=1 0 3 0 1 0 0 0 0 2 0 0 0 0 0 0

You can also use a position field as a trigger condition in the same way, this is useful to do a table based position compare:

(Source code, png, hires.png, pdf)

../_images/seq_doc-6.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
1 POSA>=POSITION 20 0 0 0 0 0 0 0 4 0 1 0 0 0 0
3 Immediate 0 1 1 1 0 0 0 0 3 0 1 0 0 0 0
2 POSA<=POSITION 10 1 1 0 0 0 0 0 3 0 0 0 0 0 0

Prescaler

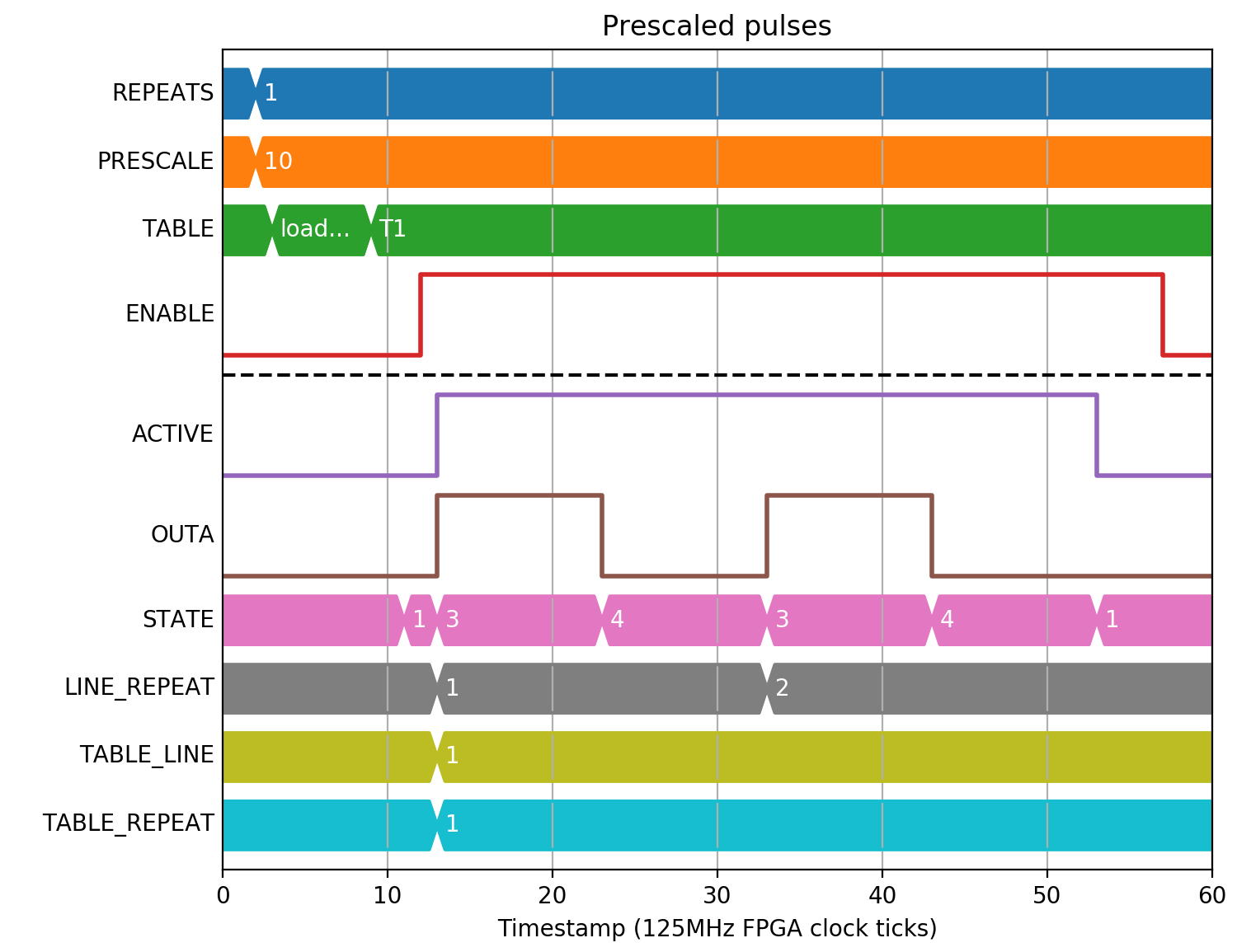

Each row of the table gives a time value for the phases. This value can be scaled with a block wide prescaler to allow a frame to be longer than 2**32 * 8e-9 = about 34 seconds. For example:

(Source code, png, hires.png, pdf)

../_images/seq_doc-7.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
2 Immediate 0 1 1 0 0 0 0 0 1 0 0 0 0 0 0

Interrupting a sequence

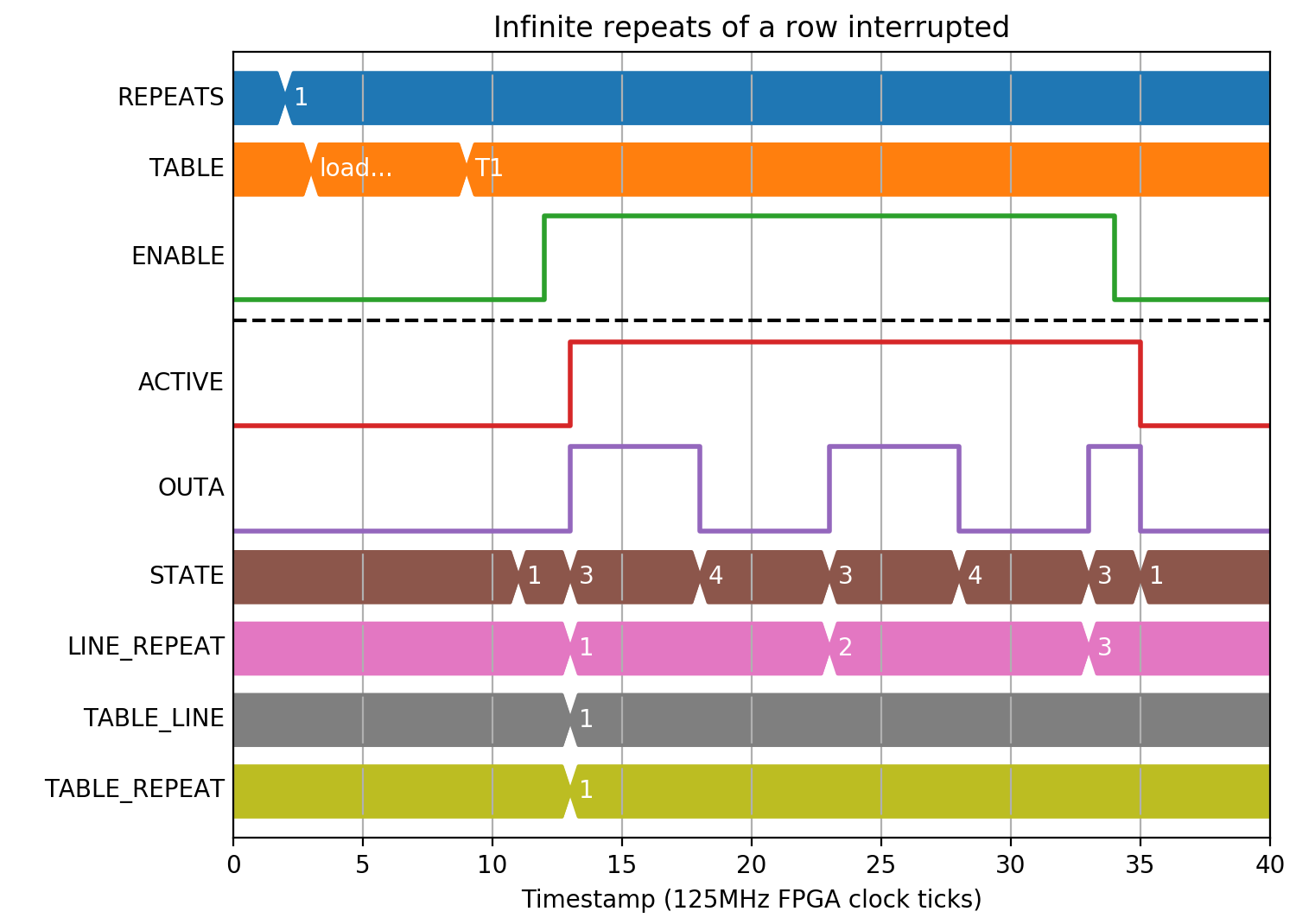

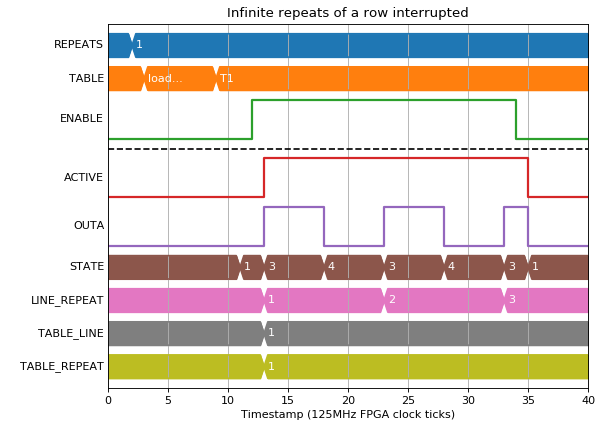

Setting the repeats on a table row to 0 will cause it to iterate until interrupted by a falling ENABLE signal:

(Source code, png, hires.png, pdf)

../_images/seq_doc-8.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
0 Immediate 0 5 1 0 0 0 0 0 5 0 0 0 0 0 0

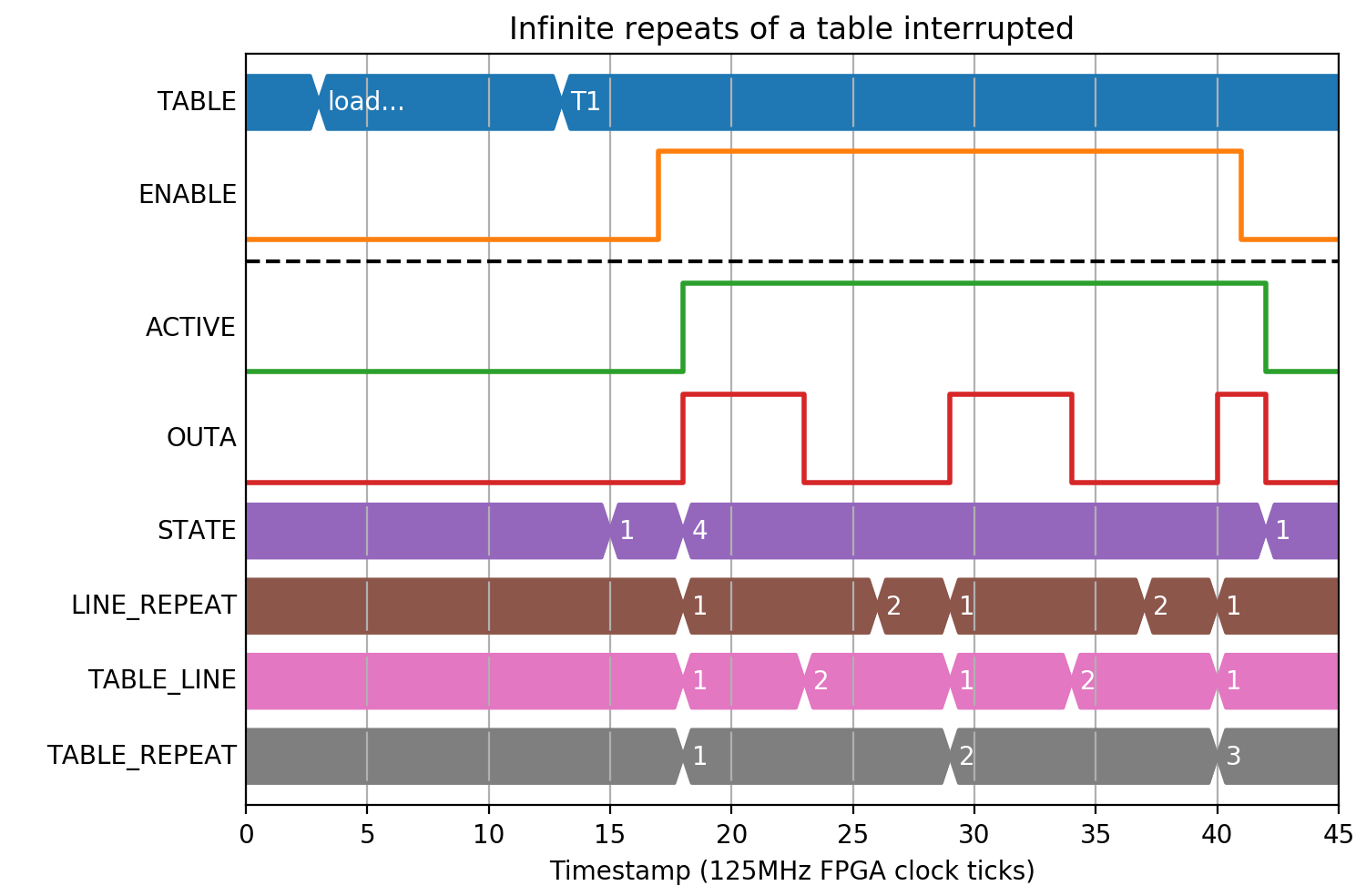

In a similar way, REPEATS=0 on a table will cause the whole table to be iterated until interrupted by a falling ENABLE signal:

(Source code, png, hires.png, pdf)

../_images/seq_doc-9.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
1 Immediate 0 0 0 0 0 0 0 0 5 1 0 0 0 0 0
2 Immediate 0 0 0 0 0 0 0 0 3 0 0 0 0 0 0

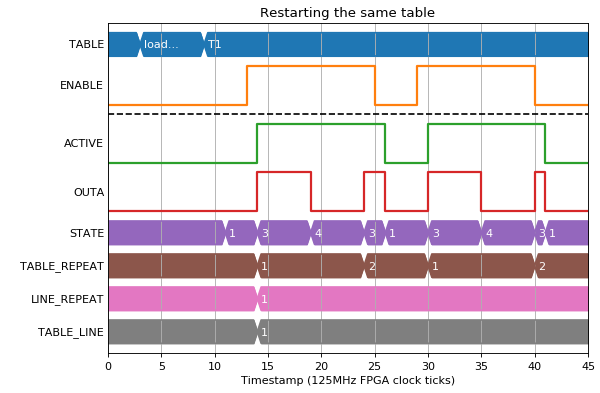

And a rising edge of the ENABLE will re-run the same table from the start:

(Source code, png, hires.png, pdf)

../_images/seq_doc-10.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
1 Immediate 0 5 1 0 0 0 0 0 5 0 0 0 0 0 0

Table rewriting

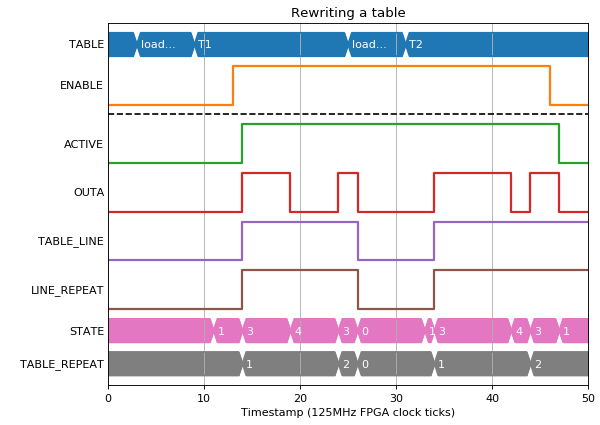

If a table is written while enabled, the outputs and table state are reset and operation begins again from the first repeat of the first line of the table:

(Source code, png, hires.png, pdf)

../_images/seq_doc-111.png
T1
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
1 Immediate 0 5 1 0 0 0 0 0 5 0 0 0 0 0 0
T2
# Trigger Phase1 Phase1 Outputs Phase2 Phase2 Outputs
Repeats Condition Position Time A B C D E F Time A B C D E F
1 Immediate 0 8 1 0 0 0 0 0 2 0 0 0 0 0 0
