CALC - Position Calc

The position calc block has an output which is the sum of the position inputs

Fields

Name	Type	Description
INPA	pos_mux	Position input A
INPB	pos_mux	Position input B
INPC	pos_mux	Position input C
INPD	pos_mux	Position input D
TYPEA	param enum	Source of the value of A for calculation 0 Value 1 -Value
TYPEB	param enum	Source of the value of B for calculation 0 Value 1 -Value
TYPEC	param enum	Source of the value of B for calculation 0 Value 1 -Value
TYPED	param enum	Source of the value of B for calculation 0 Value 1 -Value
FUNC	param enum	Scale divisor after add 0 A+B+C+D
SHIFT	param uint	Number of places to right shift calculation result before output
OUT	pos_out	Position output

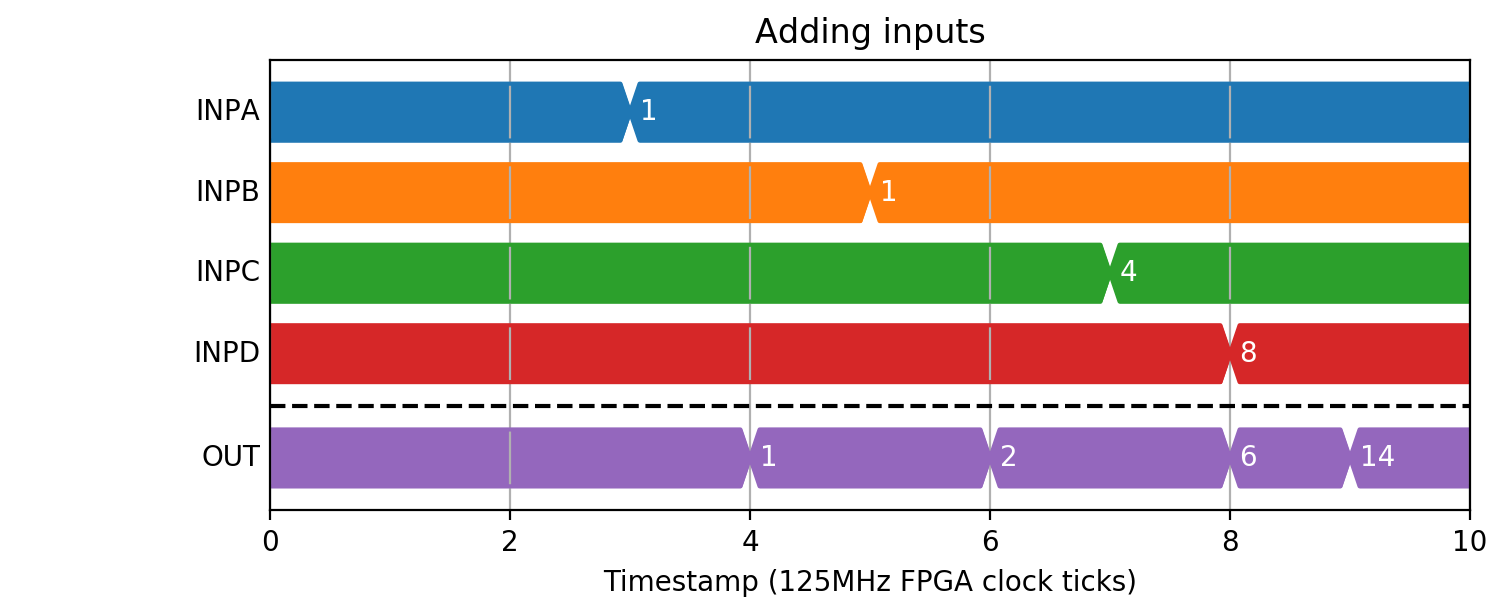

Adding inputs

The output is the sum of the inputs

(Source code, png, hires.png, pdf)

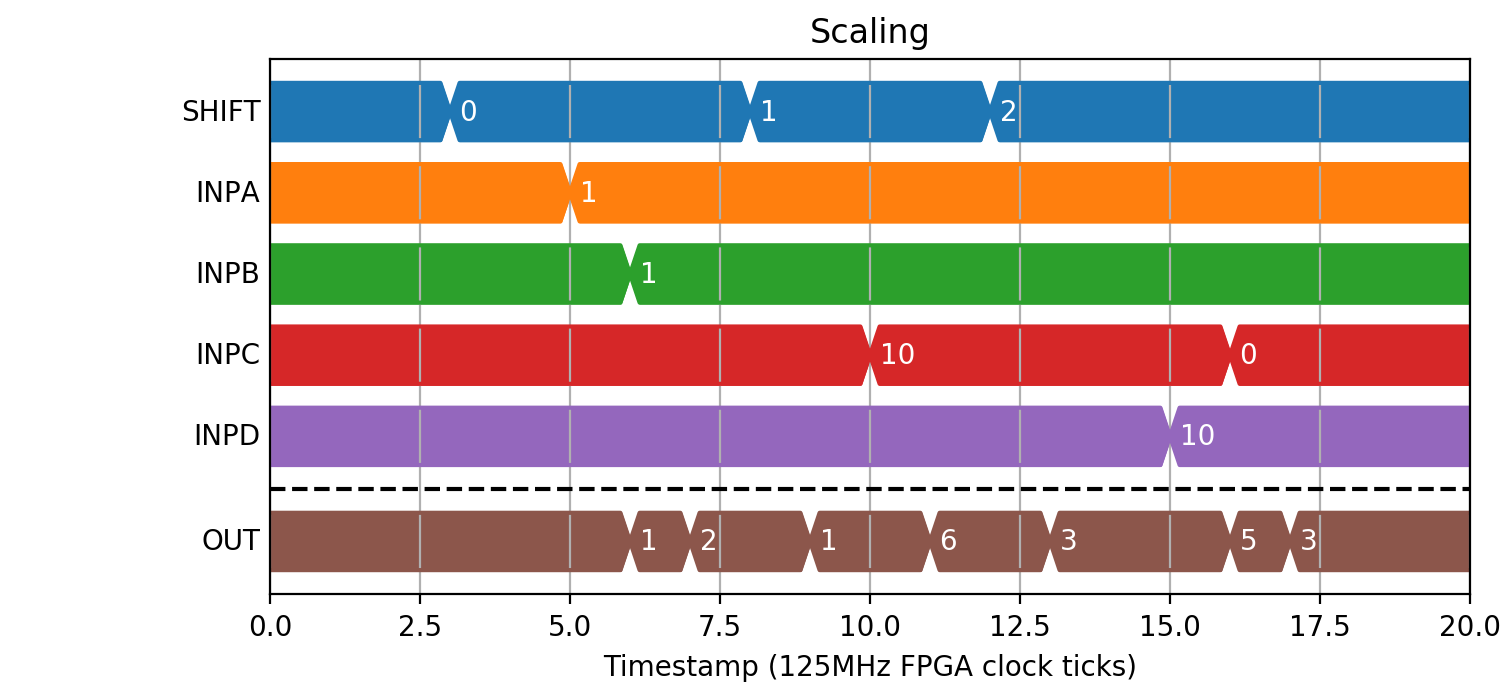

Scaling

The scale factor is a bit shift and is applied after the sum.

(Source code, png, hires.png, pdf)

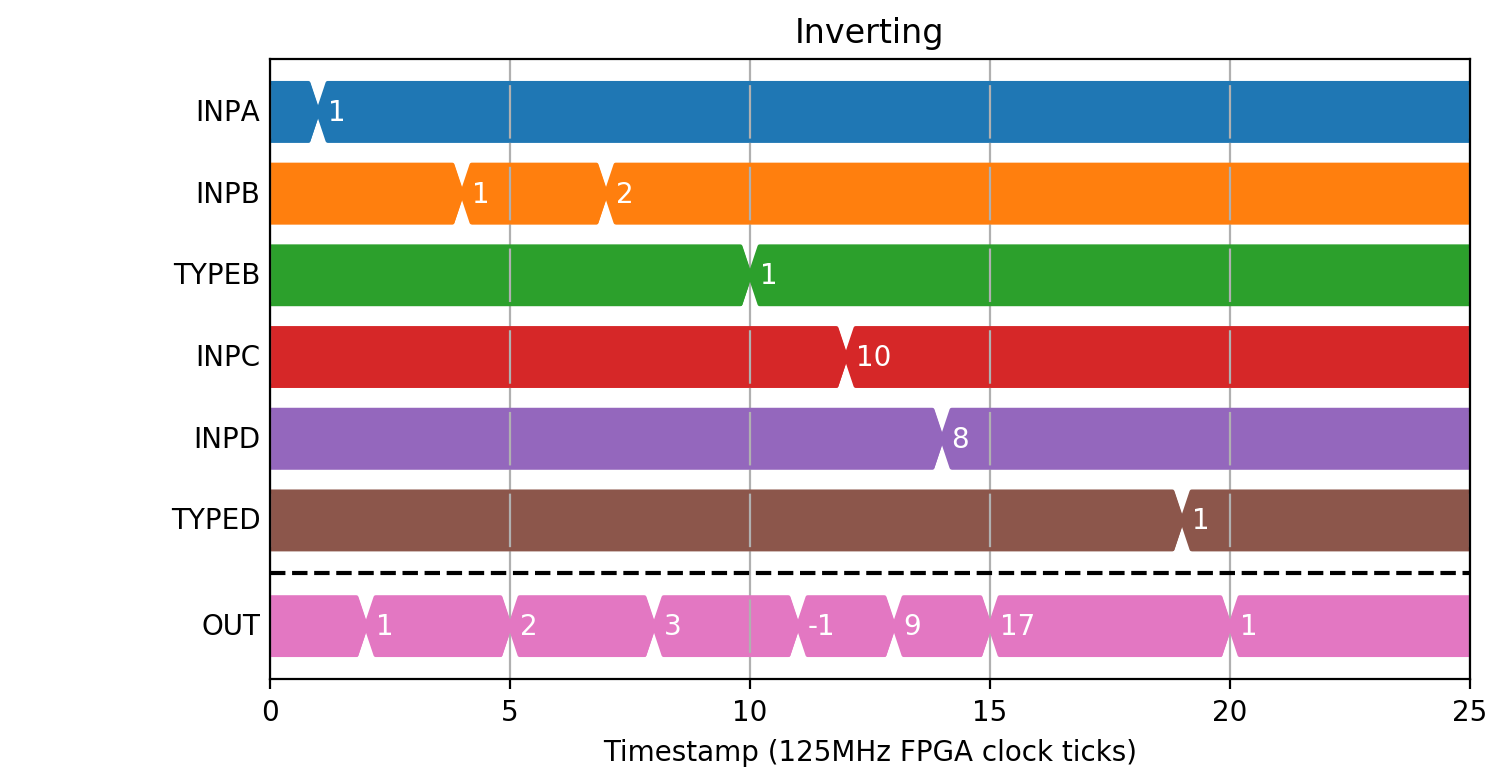

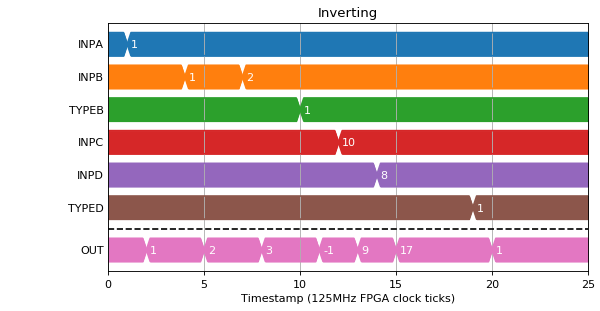

Inverting

Each input can be individually inverted before they are added together

(Source code, png, hires.png, pdf)
