PGEN - Position Generator¶
The position generator block produces an output position which is pre-defined in a table
Fields¶
| Name | Type | Description |
|---|---|---|
| ENABLE | bit_mux | Halt on falling edge, reset and enable on rising |
| TRIG | bit_mux | Trigger a sample to be produced |
| TABLE | table | Table of positions to be output
POSITION The position to set OUT to on trigger
31:0 POSITION int
|
| REPEATS | param | Number of times the table will repeat |
| ACTIVE | bit_out | High when output is being produced from the table |
| OUT | pos_out | Current sample |
| HEALTH | read enum | Table status
0 OK
1 Table not ready
3 DMA overrun
|

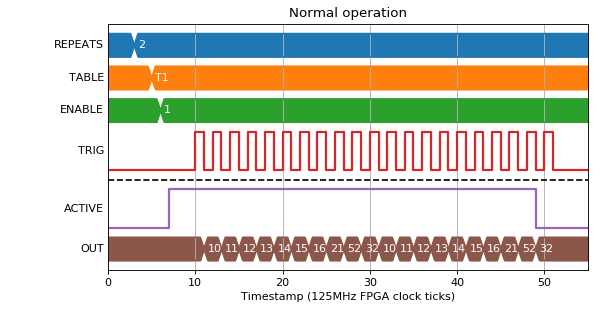

Normal operation¶
The output pulse will be generated regardless of the direction of the INP data
(Source code, png, hires.png, pdf)
| T1 |
|---|
| POS |
| 10 |
| 11 |
| 12 |
| 13 |
| 14 |
| 15 |
| 16 |
| 21 |
| 52 |
| 32 |
